Theme modifier and export helpers

Source: R/theme.R
theme_halftone.Rd

theme_halftone() is an incomplete theme to add on top of your own theme, for example theme_classic() + theme_halftone(). It changes only what a halftone needs and leaves fonts, sizes and axes to the theme it is added to:

Usage

theme_halftone(paper = "white", palette = c("inks", "process", "none"))

ggsave_journal(
  filename,
  plot,
  width = c("double", "single", "onehalf"),
  height = 100,
  dpi = 600,
  format = NULL,
  bg = "white",
  ...
)

halftone_proof(
  plot,
  width = "single",
  height = 62,
  dir = tempdir(),
  centre = c(0.5, 0.5),
  size = 20,
  zoom = 4,
  dpi = 600,
  bg = "white"
)

Arguments

paper

Background colour of the plot and panel. Use halftone_paper for cream stock.

palette

Default discrete palette on ggplot2 4.0 and later: "inks" (halftone_inks), "process" (halftone_process, press colours of one or two plates) or "none" to leave the palettes alone.

filename, plot, dpi, ...

Passed to ggplot2::ggsave().

width

"single" (89 mm), "onehalf" (120 mm), "double" (183 mm) or a width in mm.

height

Height in mm.

format

"png", "tiff" or "pdf"; NULL takes it from the extension of filename.

bg

Device background. Set it to the paper colour when the plot has a fixed aspect ratio, because the device shows beside the panel.

dir, centre, size, zoom

For halftone_proof(): output directory, the crop centre as a fraction of width and height, the crop size in mm, and the magnification.

Value

A ggplot2 theme; ggsave_journal() is called for its side effect.

Details

  • paper ground: plot and panel backgrounds in paper, no gridlines, no panel border fill;

  • legend keys large enough to show a screen (6 by 4 mm), no key background;

  • on ggplot2 4.0 and later, halftone_inks (or halftone_process) as the default discrete palette and halftone_ramp as the default continuous palette. It also sets the geom accent, which on ggplot2 4.0 is where an unmapped geom colour comes from: the stock accent is the blue geom_smooth() draws its line in, and left alone it is the one colour in a screened figure that sits outside the register. halftone_inks holds six inks and halftone_ramp four stops; past six groups, map scale_screen_discrete() instead of colour, or pass palette = "none" and set your own.

ggsave_journal() saves at a journal column width in mm. The file extension selects the format: PNG or TIFF at 600 dpi through ragg, or vector PDF through cairo_pdf(). Most journals prefer vector files for line art, and in a vector file every dot is a path at physical size. halftone_proof() renders a plot at final size and a magnified crop of one region (by default the panel centre at 4x) and returns the two file paths.

References

Nature Portfolio. Formatting guide: figures. https://www.nature.com/nature/for-authors/formatting-guide Elsevier. Artwork and media instructions. https://www.elsevier.com/about/policies-and-standards/author/artwork-and-media-instructions

Examples

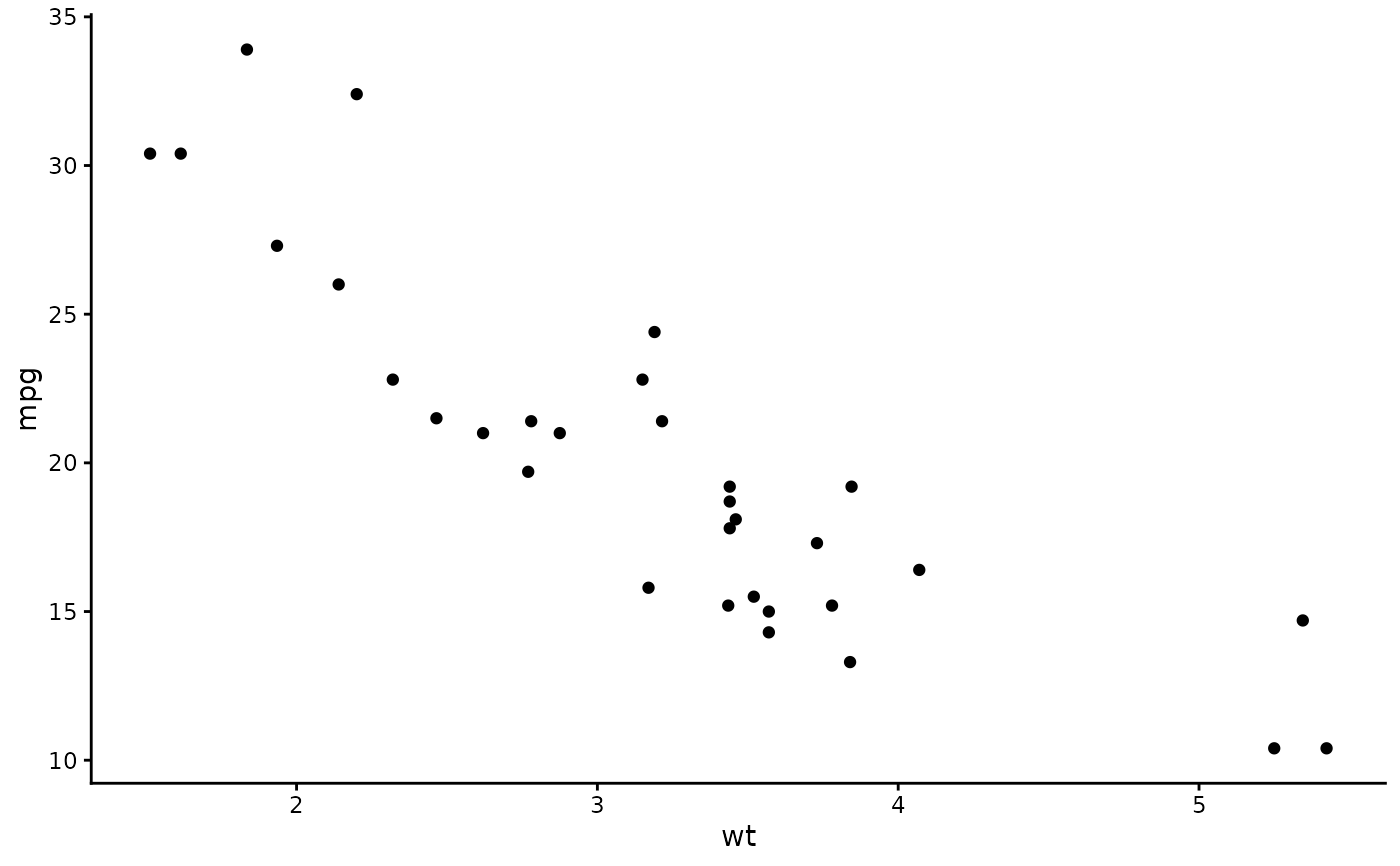

ggplot2::ggplot(mtcars, ggplot2::aes(wt, mpg)) + ggplot2::geom_point() +
  ggplot2::theme_classic() + theme_halftone()
