Draws the layer twice: first in paper colour with width mm added to each side of every stroke, then as is. Use it for a line that crosses a dot field, such as a step curve over a screened confidence band or contours over an elevation field. Keep the width small: 0.09 mm (0.25 pt, the printable minimum) against dots, 0.15 mm against a line screen. A wider halo looks like a second line.

Usage

with_halo(layer, width = 0.09, colour = "white")

Arguments

layer

A ggplot2 layer drawing lines, paths, steps, contours or points; a list holding one; or a whole plot or patchwork, in which case every layer in it is wrapped. The object handed in is left alone.

width

Halo width in mm on each side of the stroke.

colour

Halo colour. Use the paper colour of the plot; the default is white.

Value

The layer, with its geom replaced by a halo-drawing subclass.

Examples

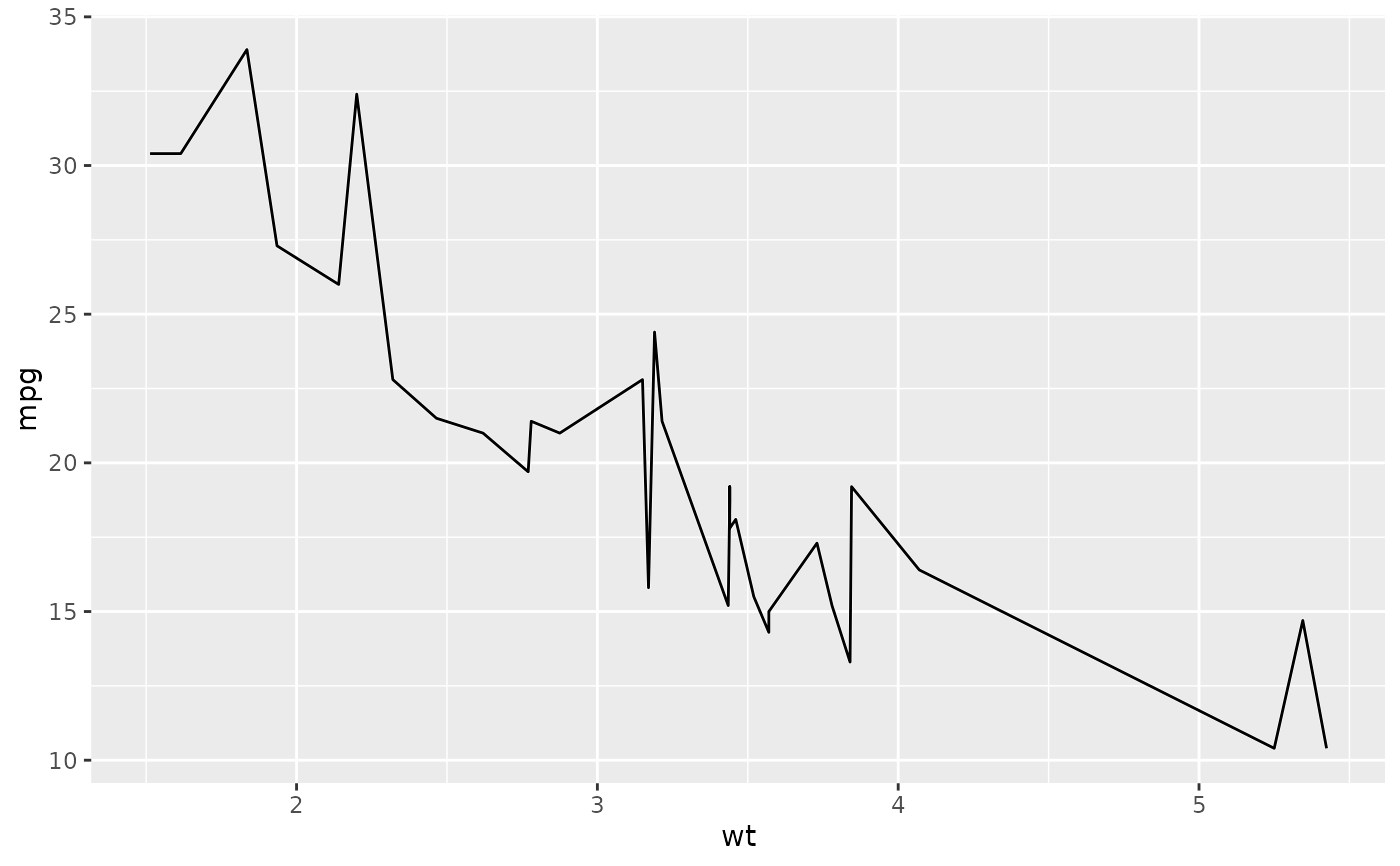

ggplot2::ggplot(mtcars, ggplot2::aes(wt, mpg)) + with_halo(ggplot2::geom_line())
