Halftone screen of a gridded field

Source: R/geom-halftone.R
geom_halftone.Rd

Draws a gridded field (x, y and a value) as a halftone. Dots or hatch lines are placed at draw time on a lattice with a physical pitch in millimetres. The area of each dot follows the tone at that point. The screen is the same whether the figure is saved at 89 mm or 183 mm. Colour and fill scales apply to the field as usual, and every dot inherits the colour of the cell it samples.

Usage

geom_halftone(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  pitch = NULL,
  angle = NULL,
  grid = "hex",
  levels = NULL,
  algorithm = "bayer",
  bayer_n = 4,
  dot_max = 0.9,
  range = NULL,
  shape = "circle",
  gamma = 1,
  overlap = "overprint",
  blend = "alternate",
  tone_max = NULL,
  min_feature = 0.09,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

# S3 method for class 'halftone'
makeContent(x)

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

stat

The statistical transformation to use on the data for this layer. When using a geom_*() function to construct a layer, the stat argument can be used to override the default coupling between geoms and stats. The stat argument accepts the following:

  • A Stat ggproto subclass, for example StatCount.

  • A string naming the stat. To give the stat as a string, strip the function name of the stat_ prefix. For example, to use stat_count(), give the stat as "count".

  • For more information and other ways to specify the stat, see the layer stat documentation.

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

  • The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.

  • A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".

  • For more information and other ways to specify the position, see the layer position documentation.

...

Other arguments passed to ggplot2::layer(), such as fixed aesthetics (colour = "black").

pitch

Lattice spacing in mm; NULL means 0.35. Journal figures want 0.3 to 0.45. Coarser pitches suit posters.

angle

Rotation of the lattice in degrees. NULL picks the default: 45 on a square lattice and for line screens, 15 for hex dots, so that no lattice axis is horizontal or vertical. When screen is mapped, the screen specs are absolute and angle (if given) is added to them.

grid

"hex" (default) or "square". A 45-degree square lattice is the classic map and photo screen.

levels

NULL for continuous tone (dot area follows tone exactly). An integer quantises tone to that many steps and dithers the remainder with algorithm; levels = 1 is a binary stipple.

algorithm

Dither used when levels is set: "bayer" (graded tone), "blue_noise" (stipple) or "floyd_steinberg" (photographs).

bayer_n

Size of the Bayer matrix when algorithm = "bayer".

dot_max

Diameter of a full-tone dot as a fraction of pitch (0.9). Above 1 dots merge; it is the ink weight of the screen at 100% tone. For line screens it is the full-tone strip width, as a fraction of pitch.

range

Value range mapped to tone 0..1 when z is used; NULL uses the data range. A wider range lightens the screen.

shape

"circle", "square", "diamond" (area-matched, so a mixed-shape screen stays in one register) or "line" for a line screen whose strip width follows tone.

gamma

Tone curve: tone is raised to this power before printing. Below 1 lifts mid-tones, above 1 deepens them.

overlap

How groups sharing the panel combine: "overprint" (woven on one lattice, default), "interleave" (each group on its own phase-shifted lattice) or "stack" (last group drawn wins; hides overlaps).

blend

Colour of a cell carrying several inks under "overprint". "alternate" (default) weaves them, so a reader can still see which inks are present. "multiply" is the subtractive physics of real ink, the product of the reflectances, so cyan over magenta over yellow goes black. "mix" is a darkened average, which is decorative rather than physical, and it collapses every overlap to one colour.

tone_max

Tone ceiling in [0, 1]. NULL means 1, or 0.55 for a binary stipple.

min_feature

Smallest printable feature in mm (0.09, i.e. 0.25 pt, the minimum line weight in journal artwork guidelines; see References). A cell whose dot would be smaller prints at the floor with probability tone/floor, so coverage is preserved and light tone becomes sparse minimum dots or broken hairlines. Hatch strips are never thinner. Set to 0 to disable.

na.rm

Remove missing values silently.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

x

A halftone grob (internal; makeContent method).

Value

A ggplot2 layer.

Details

You can give the value in two ways. aes(z = ) is normalised to [0, 1] inside the geom, over range or the data range. aes(tone = ) goes through scale_tone_continuous(), which adds a legend. Groups that share the panel (through colour, fill or group) are printed on one lattice by default, so every ink stays visible where groups overlap.

Defaults

A 0.35 mm hex lattice (73 lines per inch) rotated 15 degrees, so that no lattice axis is horizontal or vertical (a square lattice, and any line screen, goes to 45). Continuous tone and circular dots. Coarser pitches print as a dot pattern rather than as tone; 0.6 mm suits a poster. A binary stipple (levels = 1) is capped at 55% tone so that the densest region remains a stipple. Set tone_max to override.

References

Nature Portfolio. Formatting guide: figures. https://www.nature.com/nature/for-authors/formatting-guide Elsevier. Artwork and media instructions. https://www.elsevier.com/about/policies-and-standards/author/artwork-and-media-instructions

See also

with_halftone() to screen the fill of an existing layer, geom_spot() for per-point discs, scale_screen_discrete() for colour-free encodings, with_halo() for lines drawn over a screen.

Examples

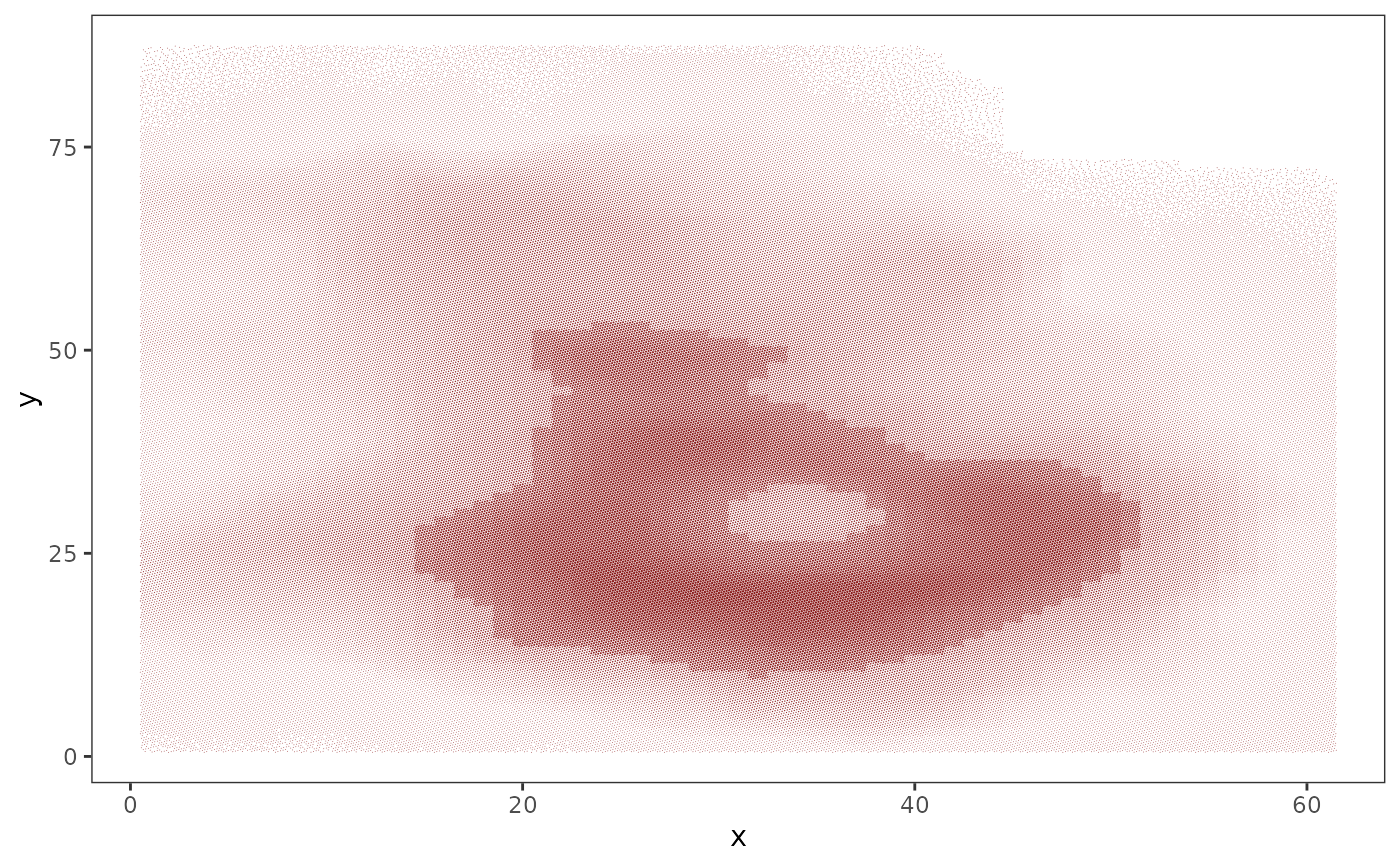

vol <- data.frame(expand.grid(x = seq_len(ncol(volcano)), y = seq_len(nrow(volcano))),
                   z = as.vector(t(volcano)))
ggplot2::ggplot(vol, ggplot2::aes(x, y, z = z)) + geom_halftone() +
  ggplot2::theme_bw() + theme_halftone()

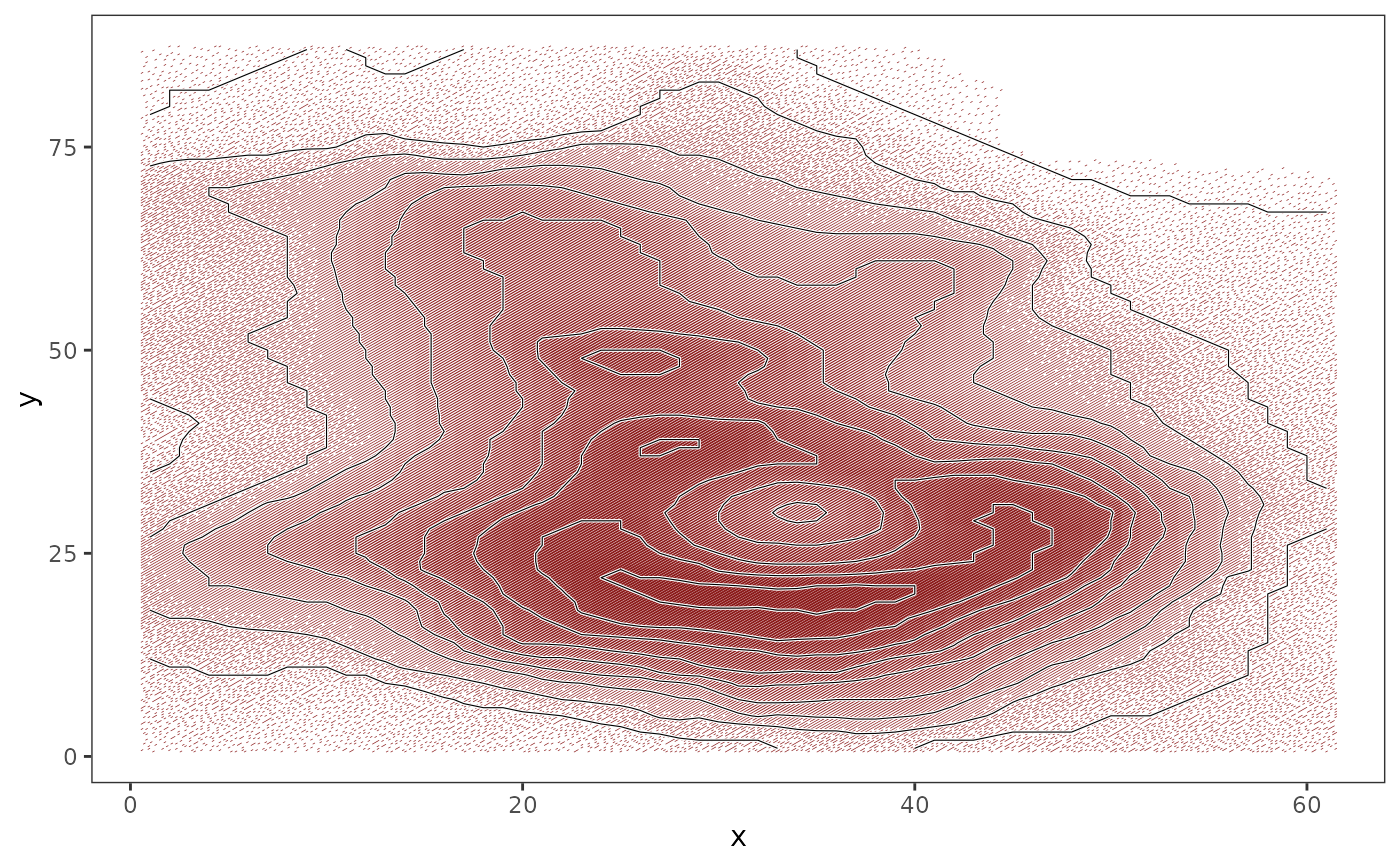

# engraving: a line screen, plus contours with a paper halo
ggplot2::ggplot(vol, ggplot2::aes(x, y, z = z)) + geom_halftone(shape = "line", angle = 30) +
  with_halo(ggplot2::geom_contour(colour = "black", linewidth = 0.2), width = 0.15) +
  ggplot2::theme_bw() + theme_halftone()
